Hydraulic pile rammer mounted on the JCS500 mast driving a solar pile.

**Hydraulic Pile Rammer – 1800 J**

A hydraulic post-driving hammer for the JCS500 Solar Piling Rig. It mounts on the rig mast and drives solar mounting piles and posts to depth with controlled, repeatable impact energy — for fast, accurate foundations across solar-farm sites. Sold separately as an optional attachment.

Feature

Specification

Your Benefit

Impact Energy

1800 J

Drives piles to depth with fewer blows.

Impact Frequency

350–800 bpm

High-speed driving for quick cycle times.

Pile / Post Compatibility

75 / 85 / 100 mm

Suits common solar pile and post profiles.

Required Oil Flow

50–110 L/min

Runs directly off the JCS500 hydraulics.

Working Pressure

22 MPa

Consistent, controlled impact power.

Mounting

JCS500 mast (hydraulic feed)

Integrates with the rig — no separate carrier.

Power Source

JCS500 hydraulic system

No extra power pack needed on site.

Impact Energy

Spec: 1800 J

Benefit: Drives piles to depth with fewer blows.

Impact Frequency

Spec: 350–800 bpm

Benefit: High-speed driving for quick cycle times.

Pile / Post Compatibility

Spec: 75 / 85 / 100 mm

Benefit: Suits common solar pile and post profiles.

Required Oil Flow

Spec: 50–110 L/min

Benefit: Runs directly off the JCS500 hydraulics.

Working Pressure

Spec: 22 MPa

Benefit: Consistent, controlled impact power.

Mounting

Spec: JCS500 mast (hydraulic feed)

Benefit: Integrates with the rig — no separate carrier.

Power Source

Spec: JCS500 hydraulic system

Benefit: No extra power pack needed on site.

WHY ADD THE PILE RAMMER

Drive Piles Fast

• 1800 J impact energy seats piles to depth with fewer blows.

• Up to 800 bpm keeps installation moving across the array.

• Controlled, repeatable energy for consistent pile depth and alignment.

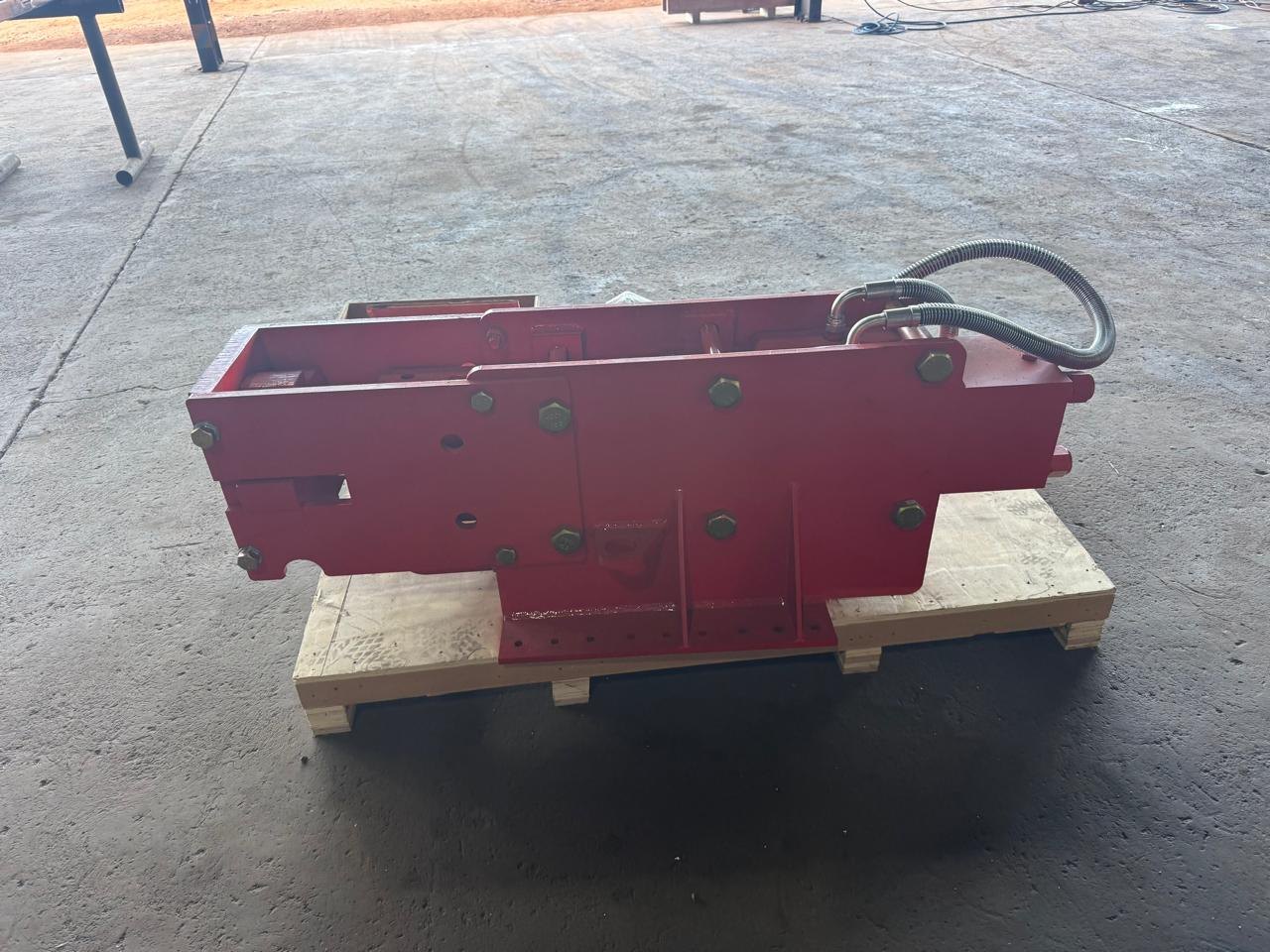

Hydraulic pile rammer with hydraulic hose connections.

Direct Rig Integration

• Mounts on the JCS500 mast and uses the rig's hydraulic feed.

• Runs off the rig's hydraulics — 50–110 L/min, no extra power pack.

• Quick-couple connections for fast fit-up and changeover.

Solar-Ready

• 75 / 85 / 100 mm pile and post compatibility for common solar profiles.

• 360° rig chassis aligns each pile precisely before driving.

• Backed by Drillbuilders with parts and field support.

Built to Drive

A simple, robust hydraulic hammer that turns the JCS500's hydraulic power into clean, repeatable pile-driving impact.

Controlled Impact

Repeatable impact energy delivers consistent pile depth and alignment — critical for solar panel foundations.

Hydraulic Simplicity

Powered entirely by the rig — no separate engine or compressor. Quick-couple hoses make fit-up fast.

Field-Serviceable

A rugged, uncomplicated design built to keep working on remote solar sites with minimal maintenance.

PAIRS WITH

JCS500 Solar Piling Rig

The crawler drilling rig this rammer is built for — auger and DTH drilling with a 360° rotating chassis and Cummins power.

More info? View details

Drilling Tooling

Augers, DTH hammers, bits, drill pipe and sub-adapters for the JCS500 — held and supported locally.

More info? Ask our team

Custom drilling solutions by Drillbuilders.

Custom Solutions

Need a different driver, adapter or rig configuration? Drillbuilders designs and builds to your project's requirements.
