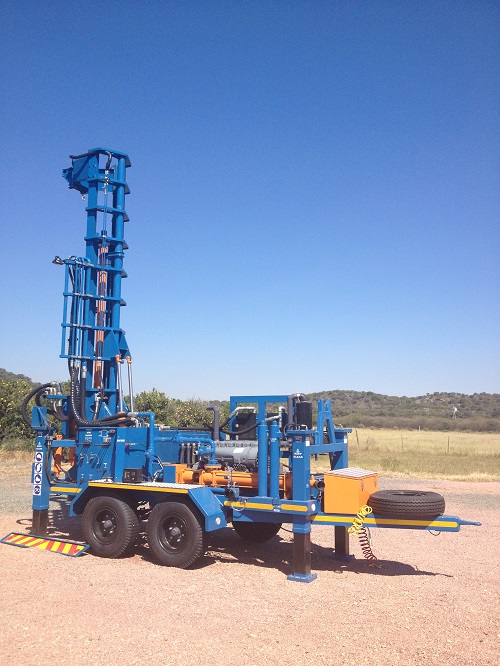

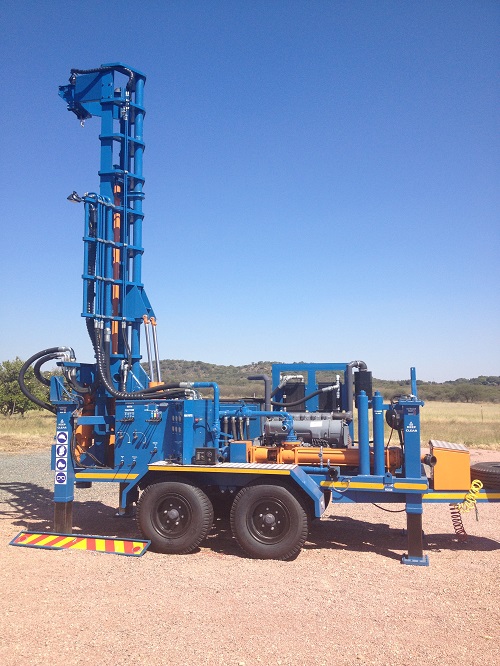

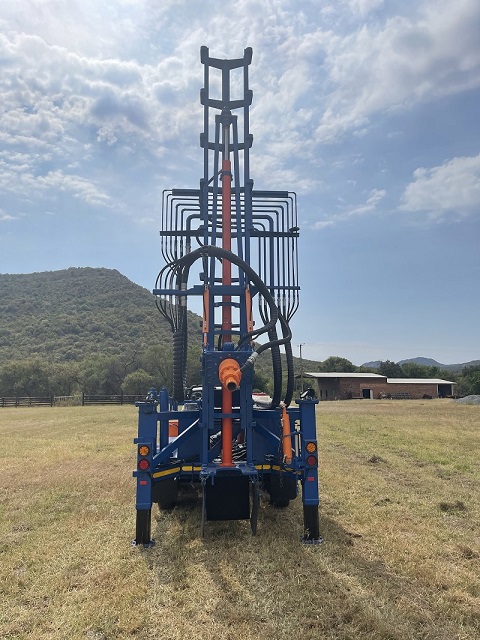

TT300 Specifications:
Drill rig with a rated depth capacity of 300 meters
Build as a Tandem trailer rig.
Axles - 2 x 5 ton Air Braked axles
Weight - 5. Ton
Feed Cylinder - 100mm Barrel, 70 mm Shaft, 3.6 meter stroke
Outrigger (Jacks) - 4 X Boxed Outriggers with 800 meter stroke
Foam pump - 21 Liter per min 35 Bar
Foam/Water Tank - 120 Liter
Tower - direct on cylinder. Triangle shape.
Winch - 1 Ton
Push Down force - 5 000 Kgf
Pull up Force -13 000 Kgf
Tilt cylinders - 2 x 80 barrel 50 shaft
Breakout - Cylinder 300 mm stroke and Chain
Rotational Torque - 5500 Nm
Rotational hear - Gearbox type
Hydraulic oil cooler
Hydraulic Oil tank Capacity - 330 Liters
Engine - F6L912 66 Kw at Sea level
Hydraulically driven Mud Pump 15 Bar 500 Liter per min
