WIRELINE CORE TO 500 METRES. COMPACT ENOUGH TO GO WHERE THE GEOLOGIST POINTS.

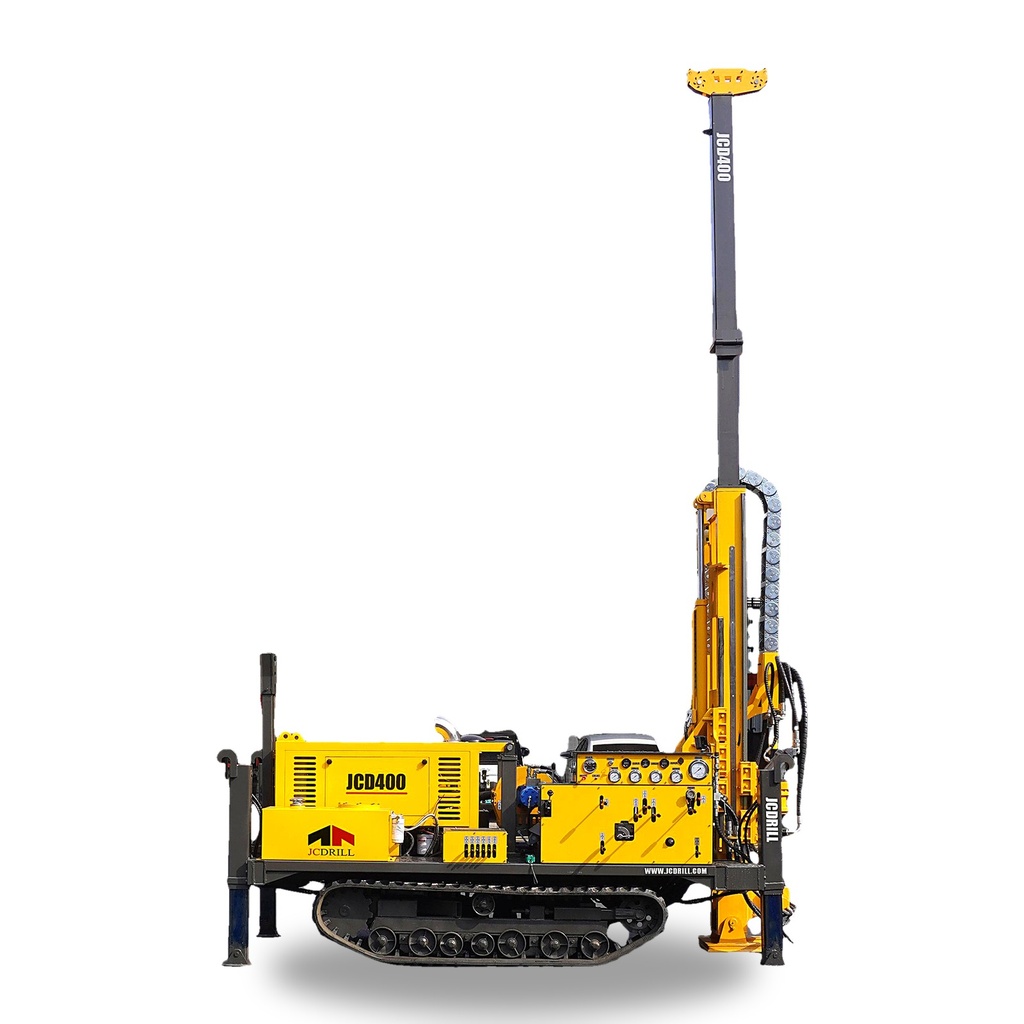

The JCD400 is a compact, fully hydraulic crawler core drilling rig for mineral exploration
and geological coring. It pulls wireline core in HTW, NTW and BTW sizes — 500 m on BTW,
400 m on NTW — with the inner tube coming up on the wire, not on the rods. Fewer trips,
more metres cored per shift.
Walks itself to the collar. Steel crawler tracks, 3.5 km/h travel and a
40° climbing ability put this rig on holes a truck can't reach. Dual manual and remote

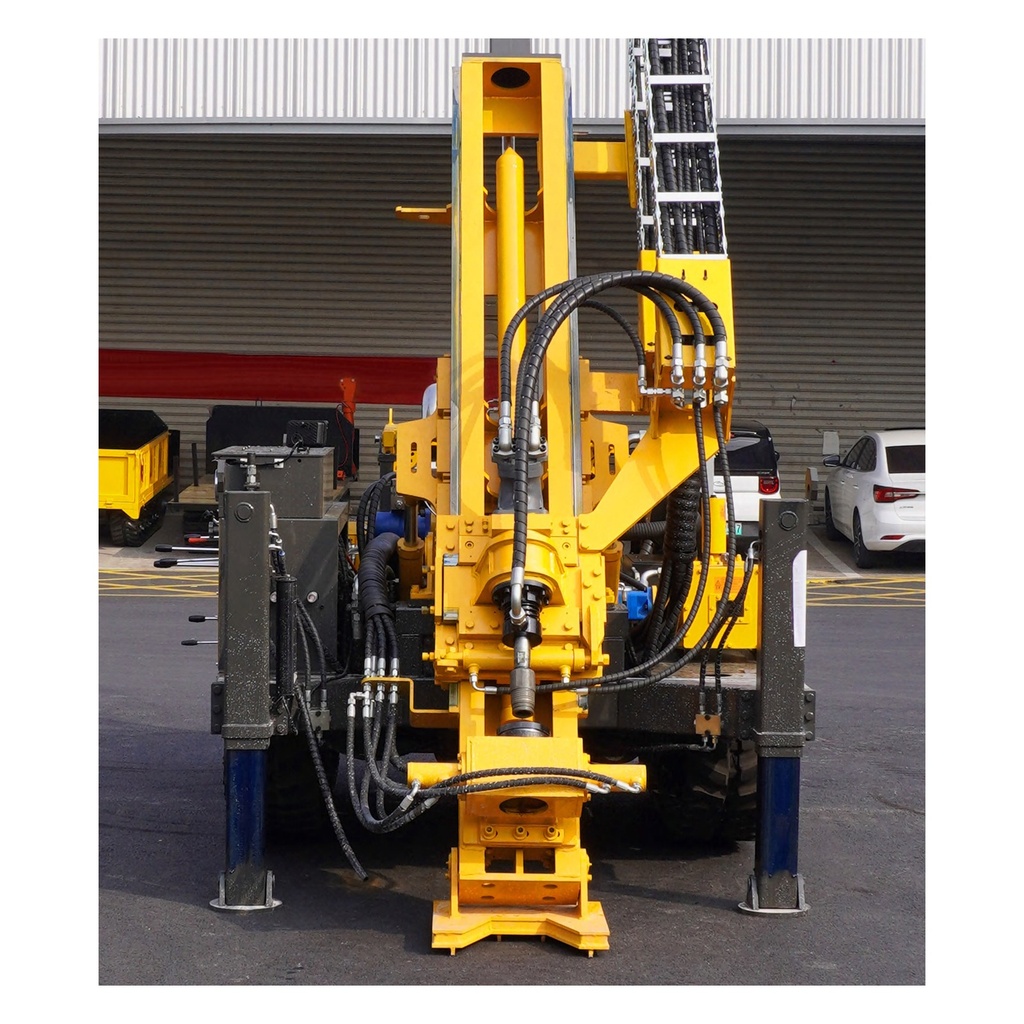

control lets the operator walk it up a slope from a safe distance, then the one-piece
ground-touching mast sets any angle from 45° to vertical.
Hydraulic everything. A 70 kW YUCHAI turbocharged diesel drives a
20 MPa / 160 L/min hydraulic system — feed, rotation, lifting and clamping are all
hydraulically driven. The 1 900 mm feed stroke and 14-ton pull-up handle stuck rods
and hard ground without drama. Prefer Cummins power? The engine can be changed to a
Cummins diesel on request — just ask when you enquire.
Mud pump and hoist on board. The integrated BW-100 pump delivers up to
100 L/min at 7 MPa for clean cuttings removal, and the 600 kg rope hoist with 600 m of rope

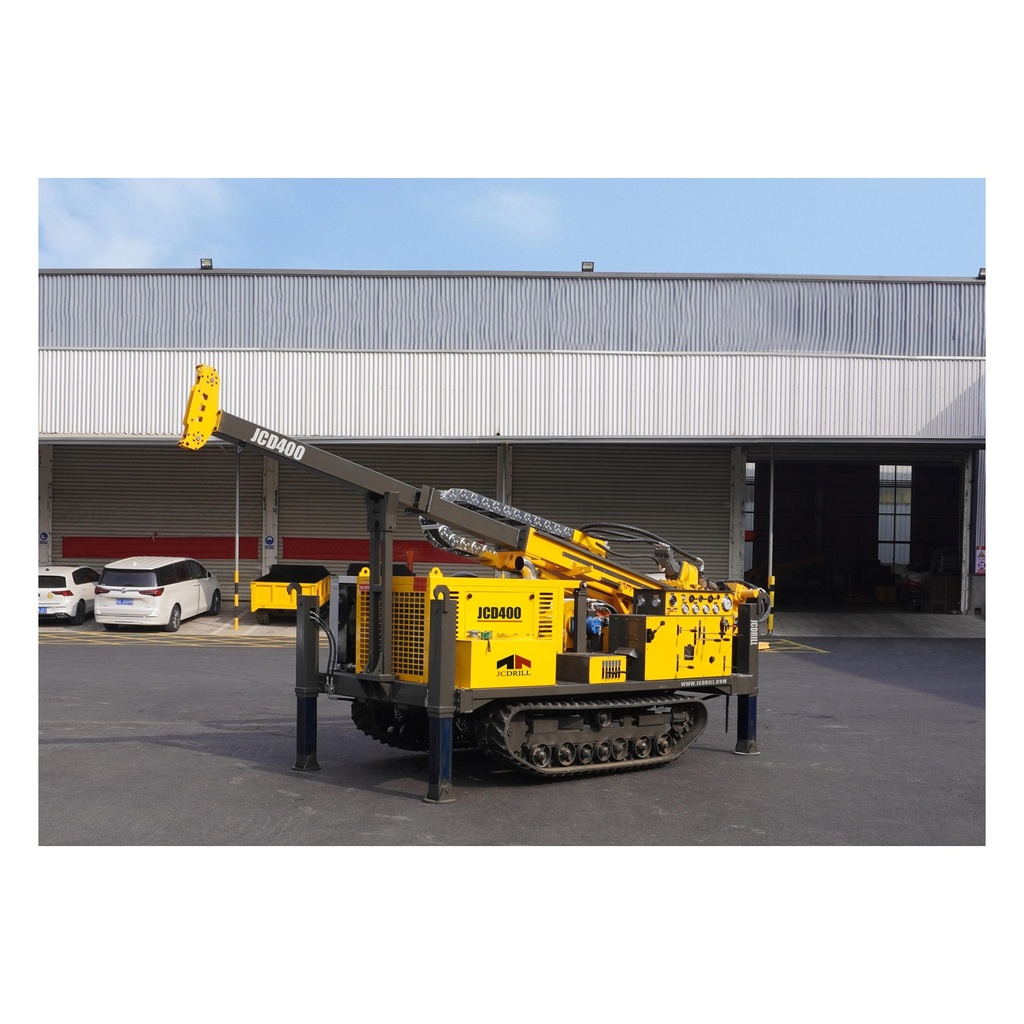

handles the wireline work. At 4.3 tons and 4.2 m long it moves on a drop-side truck.
Delivered drill-ready by Drillbuilders. We supply the JCD400 with
commissioning support and back it from our Mokopane workshop. One supplier, one phone call.
| Coring depth (HTW / NTW / BTW) | 200 m / 400 m / 500 m |
| Engine | YUCHAI turbo diesel, 70 kW @ 2 400 rpm |
| Engine option | Cummins diesel available on request |
| Torque / rotation speed | 350–700 N·m / up to 1 300 rpm |
| Feed | 1 900 mm stroke · 14 t pull-up / 7 t push-down |
| Mast | One-piece ground-touching · 45–90° drilling angle |
| Mud pump | BW-100 · 0–100 L/min · 0–7 MPa |
| Rope hoist | 600 kg · 600 m × ⌀6 mm rope |
| Mobility | Crawler · 3.5 km/h · climbs 40° · manual & remote control |
| Transport size / weight | 4 200 × 2 050 × 2 300 mm · 4.3 t |
