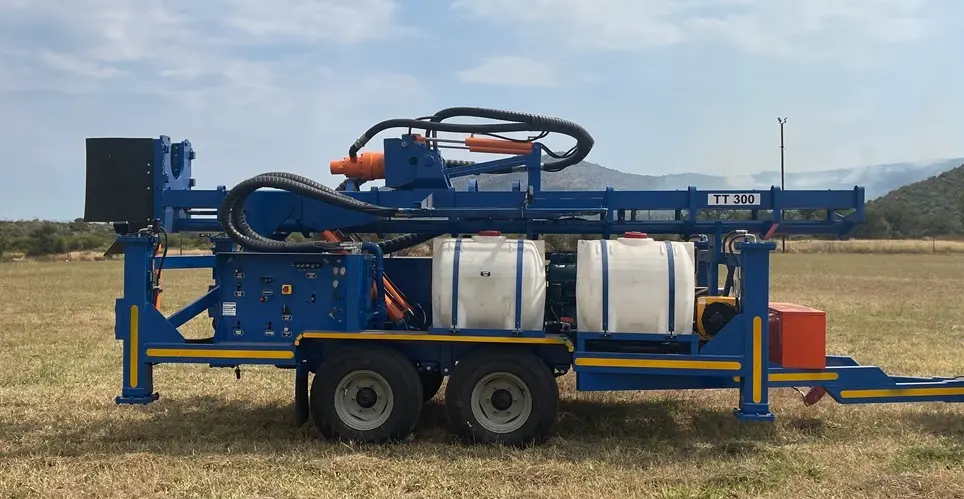

TT300 DRILL RIG
TT300: High-Capacity Drilling, Total Trailer Mobility.
SUBHEADLINE: 13 Tons of Pulling Power on a Road-Legal Tandem Trailer. Performance Without the Truck Cost.
The Power of Mobility Meets Deep-Hole Capacity
The TT300 Trailer Drill Rig is the ideal solution for contractors seeking heavy-duty drilling capabilities without the capital expenditure or regulatory demands of a dedicated truck rig. Rated for 350 meters deep, this robust Tandem Trailer Rig packs serious performance, requiring only a truck with air brakes for towing and power.
Key Performance Differentiators
1. True High-Capacity Trailer Design
- Serious Pull: Features a substantial 13-Ton (13,000 Kgf) Pull-Up Force, rivaling many truck-mounted rigs and ensuring effective control over deep well casing.
- Deep Capacity: Rated for a drilling depth of 350 meters using a gearbox-type rotational head and a 5500 Nm rotational torque.
- Road-Ready: Built as a 5.5 Ton Tandem Trailer with Air Braked axles, ensuring it is road legal and safe for relocation.
2. Efficient and Reliable Systems
- Proven Power: Utilizes the dependable Deutz F6L912 6-Cylinder Engine (66 kW) for consistent hydraulic output, complemented by a large 330 Liter Hydraulic Oil Tank and an oil cooler for sustained running.
- Hydraulic Control: The 3.6-meter stroke (using a 100 mm barrel) allows for fast cycle times, supported by a hydraulic head tilt and breakout cylinder for easy rod management.
3. Operational Setup
- Stability: Four Boxed Hydraulic Outriggers (800 mm stroke) provide necessary stability and quick leveling on site.
- Self-Contained: Includes a 120 Liter Foam/Water Tank and a 21 L/min Foam Pump, offering self-sufficiency for various drilling methods.
TT300 Quick Specifications
| Feature | Specification | Key Benefit |
| Pull-Up Force | 13 Ton (13,000 Kgf) | High power in a towable format. |
| Depth Capacity | 350 Meters | Excellent capacity for production wells. |
| Engine | Deutz F6L912 6-Cylinder (66 kW) | Reliable, dedicated drilling power. |
| Torque | 5500 Nm (Gearbox Type) | Strong rotational force for deep penetration. |
| Mobility | Tandem Trailer with Air Brakes | Road-legal, cost-effective transport solution. |
Export to Sheets
CALL TO ACTION
Need deep-hole power without the truck commitment? The TT300 is your mobile solution.
📞 Call Us Directly: +27(0)10 500 1605 📧 Email: sales@drillbuilders.com
