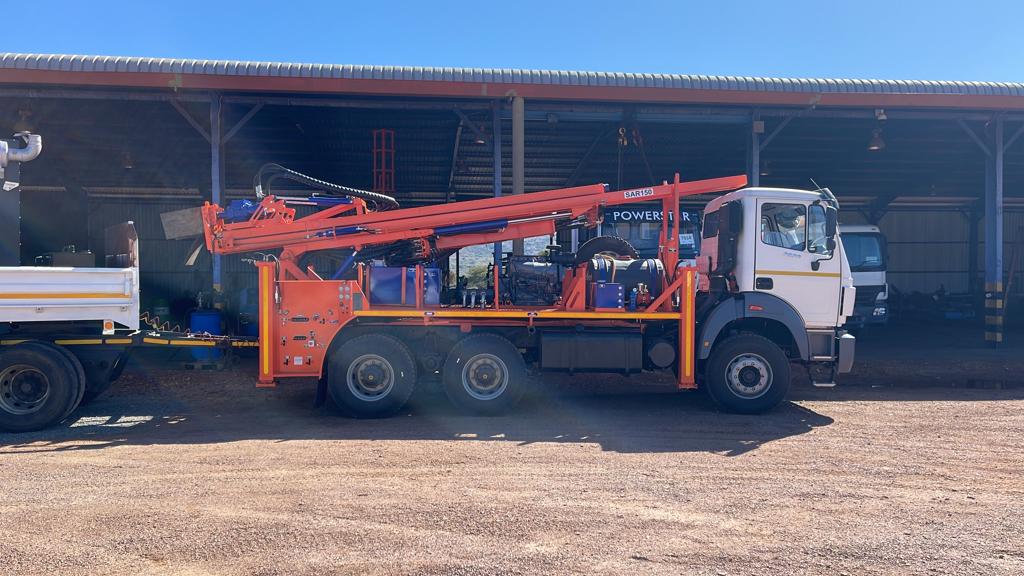

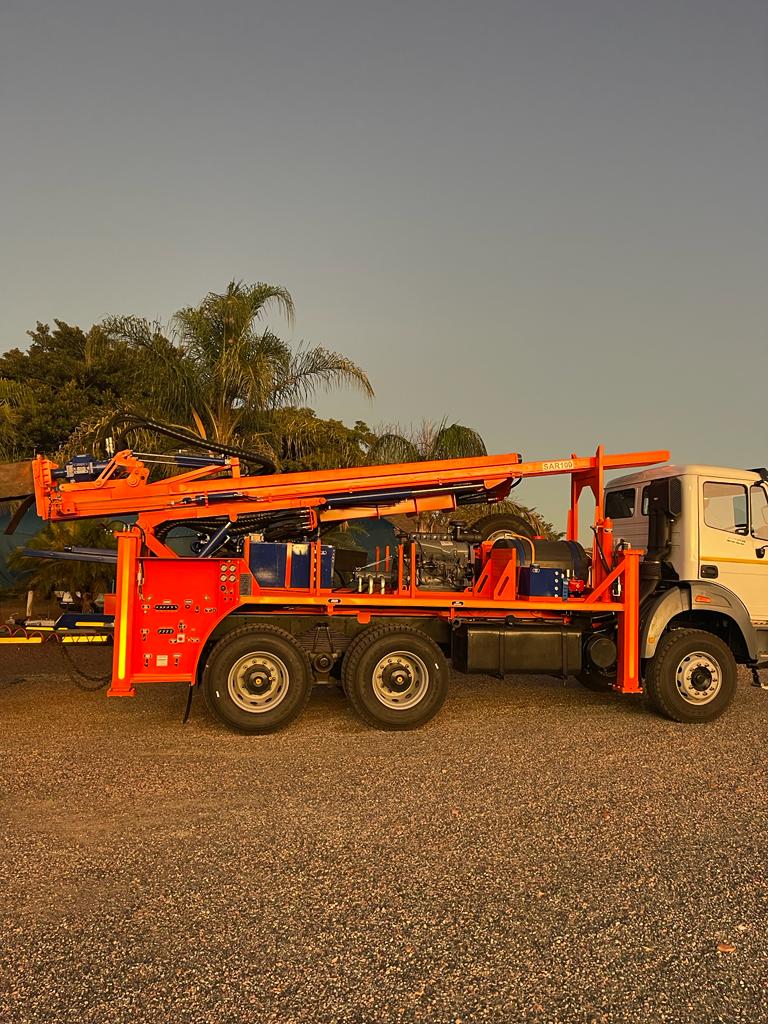

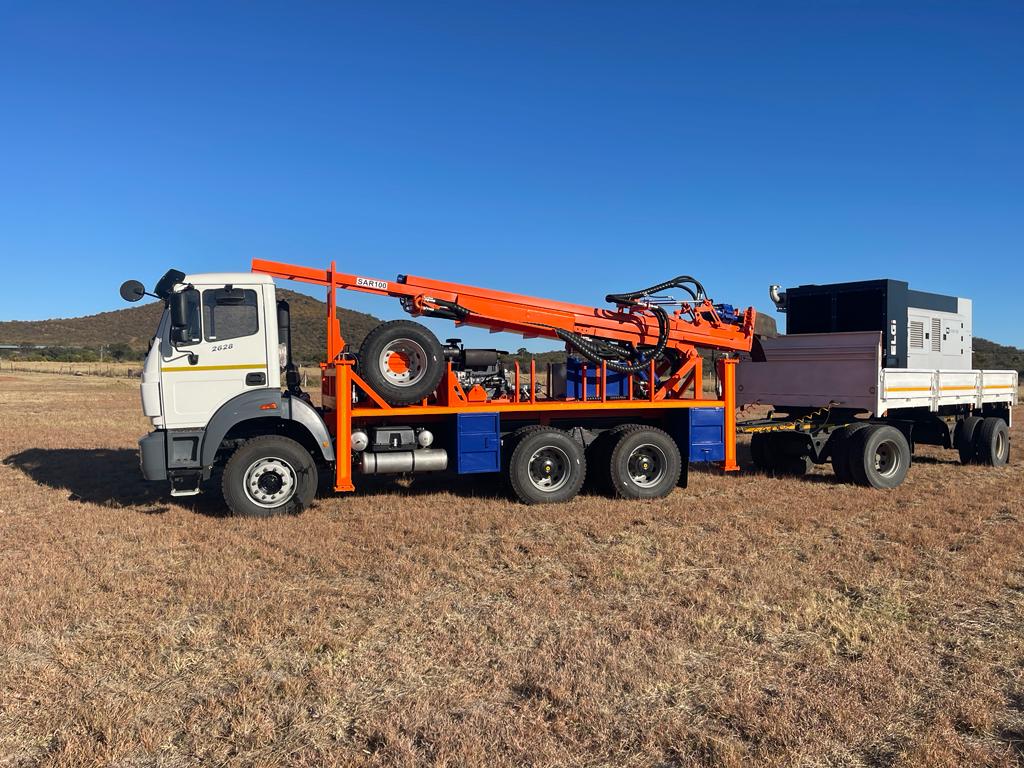

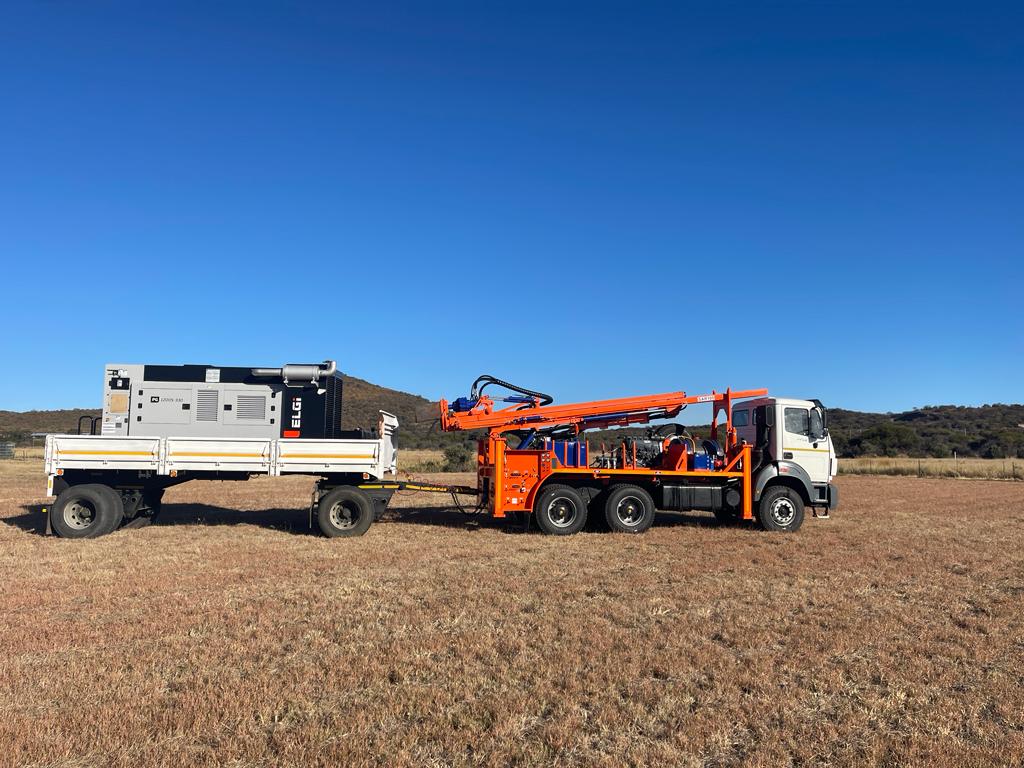

SAR150
Specifications:
Drill rig with a rated depth capacity of 250 meters, built on a 6x4 or 6x6 truck
in the 15 - 18 ton GVW class.

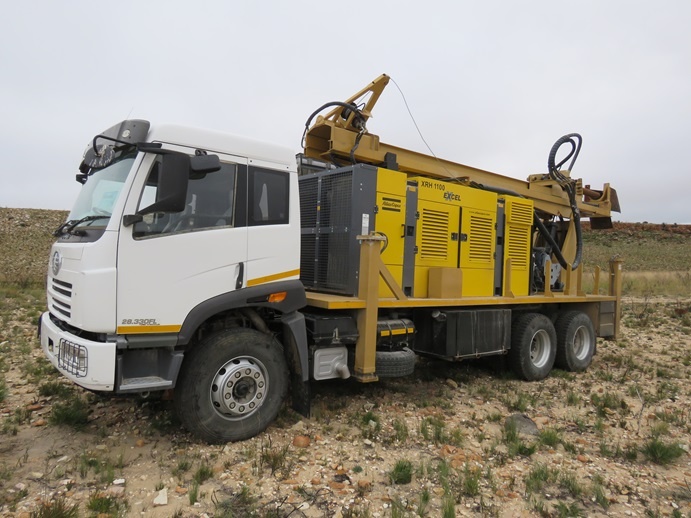

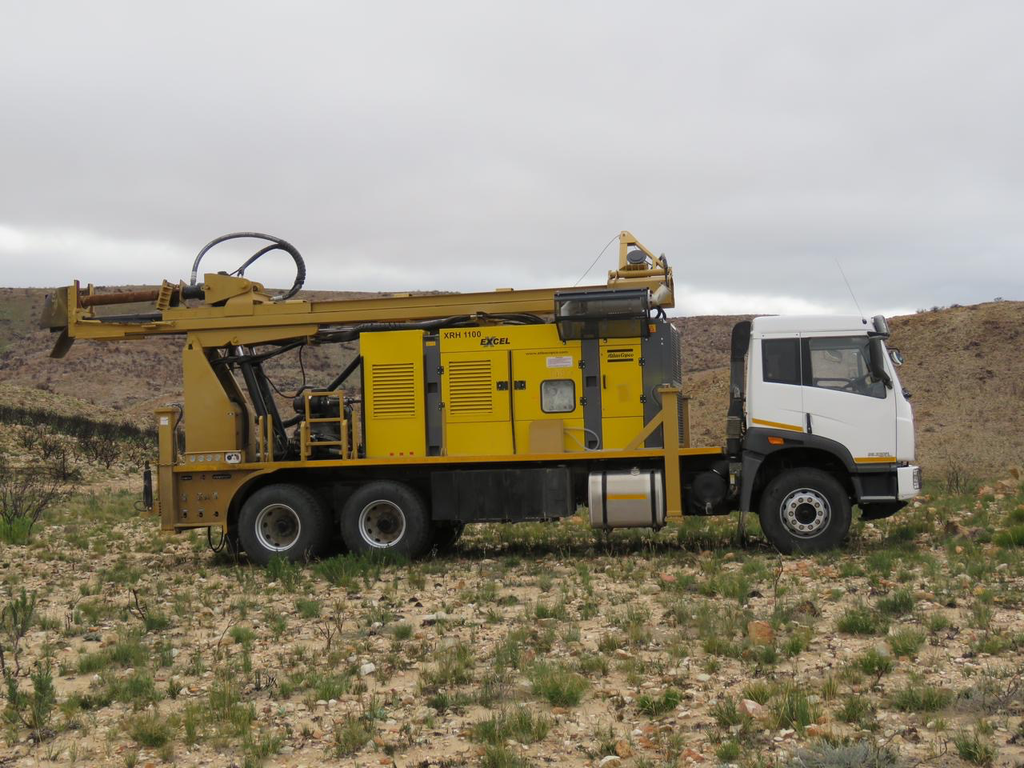

Self-contained - the air compressor is carried on the deck, so no compressor truck
or towed compressor unit is needed.
On-board compressor - integrated screw compressor, sized for 10 inch DTH work. Make,
free air delivery and pressure are configured per build to suit truck capacity, rig
configuration and budget.
Max hole diameter - 10 inch (254 mm)
Drilling method - DTH primary, mud rotary capable
Feed stroke - 3.6 meter up to 5.6 meter depending on configuration (the 5.6 meter
stroke runs 5 meter drill rods instead of 3 meter)
Feed Cylinder - 100 mm Barrel, 80 mm hard chrome Shaft
Pull up force - 11 700 Kgf (117 kN)
Push down force - 7 000 Kgf (70 kN)
Rotational Torque - 5 500 Nm
Rotary head - Gearbox type, or B100 Staffa with double bearing Bearing Box
Rotary head tilt - hydraulic, standard
Tower - direct on feed cylinder 1:1
Dump Tower 1.8 meter
Tilt cylinders - 2 x 100 mm barrel, 80 mm shaft
Breakout - Cylinder 400 mm stroke and Chain
Outriggers (Jacks) - 4 x Boxed Outriggers with 1 200 mm stroke
Rod winch
Drill rods - 89 - 114 mm, 3 - 5 meter depending on truck

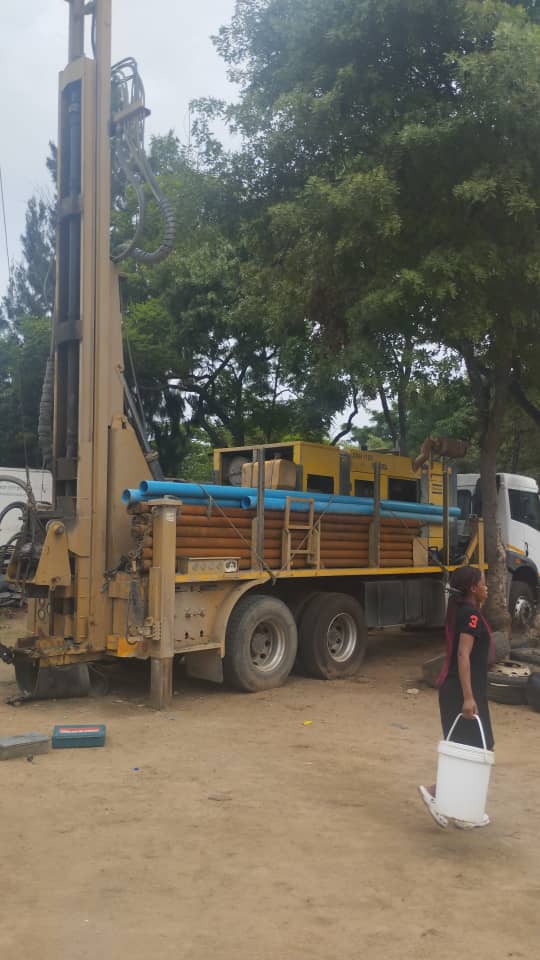

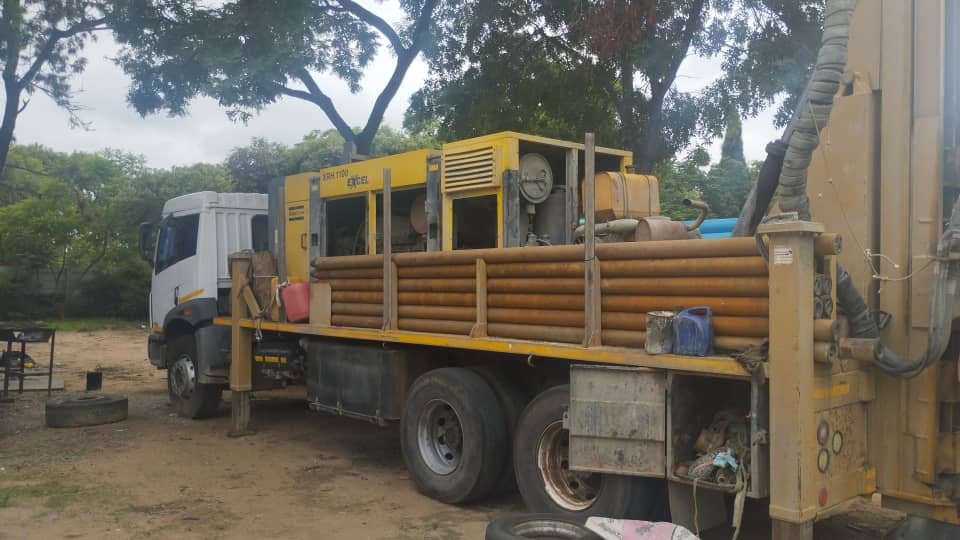

Rod storage - on deck, no carousel. Capacity depends on truck size and rod length.
Engine - Deutz F6L912 Air cooled 6 Cylinder, 66 kW at operating speed
Hydraulics - gear pumps, 250 bar maximum, air cooled oil cooler
Foam pump - 21 Liter per min @ 35 Bar
Foam Tank - depends on truck space available.
