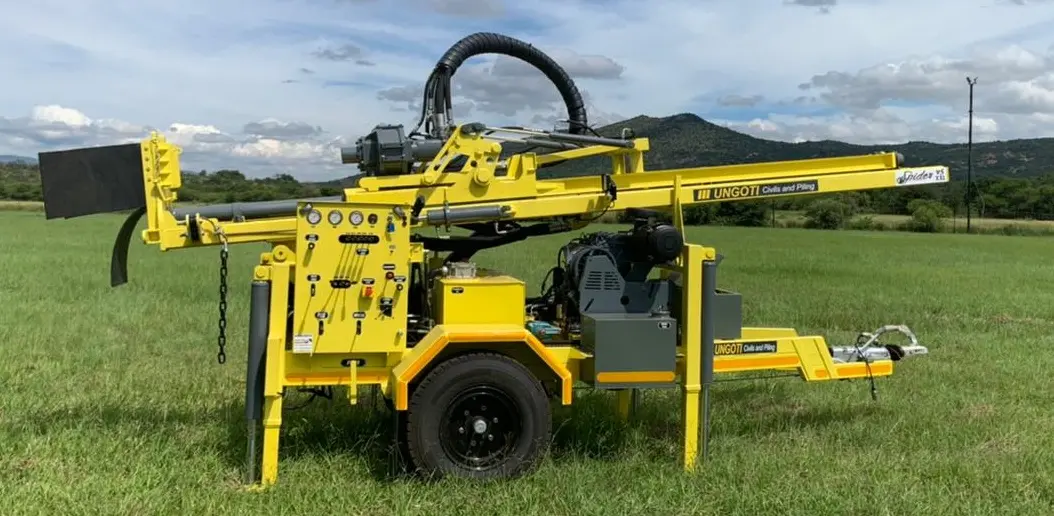

Spider V5 XXL Trailer Drill Rig
Drill Deeper, Drill Smarter:
Unstoppable Power. Unbeatable Mobility. Your Next Level Drilling Solution is Here.
The Problem We Solve: Getting Big Rig Power in Hard-to-Reach Places
In the drilling world, you're constantly balancing power with portability. Do you sacrifice the essential thrust and torque for a rig you can actually transport? Not anymore. The Spider V5 XXL Trailer Drill Rig is engineered to deliver serious drilling performance—perfect for water well—all mounted on a heavy-duty, road-legal trailer. It’s the ultimate combination of high-capacity performance and rugged, self-contained mobility.
Top 3 Reasons to Upgrade to the Spider V5 XXL
1. Extreme Pullback Power in a Compact Package
Don't let the trailer design fool you. The V5 XXL is a true workhorse. With a massive 12-Ton (26,450 lbs) Pullback Capacity, you have the strength you need to manage deep boreholes and effectively pull casings and drill strings, dramatically increasing your operational efficiency and safety.
2. Proven Reliability and High-Torque Performance
- Engineered Power: Driven by the reliable, air-cooled Deutz F4L912 4-Cylinder Diesel Engine (44 kW), known globally for its durability and ease of maintenance.
- High-Torque Drilling: Experience superior penetration in tough strata with 4800 Nm (approx. 3540 ft-lbs) of rotational torque.
- Deep Reach: Uses standard 3-meter drill rods with a 3.45-meter feed cylinder stroke, maximizing your drilling speed with every pass.
3. Ready to Move, Ready to Work
Time is money. The trailer-mounted design means less setup time and faster relocation between job sites. It’s Road-Legal (GVM 3450 Kg), uses a 3.5 Ton Braked Axle, and is secured instantly with four powerful Hydraulic Outriggers for rock-solid stability on any terrain.
Key Specifications at a Glance
| Feature | Specification | Your Benefit |
| Pull Back | 12 Ton (Approx. 26,450 lbs) | Maximum power for deep hole recovery. |
| Rotational Torque | 4800 Nm | Excellent penetration in hard rock formations. |
| Engine | Deutz F4L912 Air-Cooled Diesel (44 kW) | Reliable, robust power source. |
| Rod Length | 3 Meter | Utilizes standard, readily available drill rods. |
| Stabilization | 4 x Hydraulic Outriggers | Quick, stable setup on any terrain. |
| Auxiliary Systems | Foam Pump & Hammer Lubricator Included | Versatility for DTH and Mud drilling methods. |
CALL TO ACTION
Stop Waiting. Start Drilling.
The Spider V5 XXL is a strategic asset designed to increase your crew's productivity and expand your operational range.
Ready to request a quote?
REQUEST A QUOTE TODAY
